| ENGINE |
| Type |
800cc,Twin V-Type Cylinder, Liquid Cooled, 8 Valve |
| Bore x Stroke |
91mm x 61.5mm |
| Compression Ratio |
9.5:1 |
| Max. Power |
55hp/6800rpm |
| Max Torque |
91N.m/4250rpm |
| Fuel Supply |
Electric Fuel Inject (EFI) |
| Ignition |
ECU |
| Start Type |
Electric |
| Transmission |
Automatic: L-H-N-R |
| Drive system |
Shaft (2WD, 4WD Limited Slip, 4WD Differential Lock) |
|
| CHASSIS |
| Suspension Front |
Independent dual cross arm w/hydraulic spring combined type |
| Suspension Rear |
Independent dual cross arm w/hydraulic spring combined type |
| Brake Front |
Dual ventilated hydraulic disc |
| Brake Rear |
Dual ventilated hydraulic disc |
| Tire Front |
AT26×9-12 radial |
| Tire Rear |
AT26×10-12 radial |
|
| DIMENSIONS |
| LxWxH(inch) |
105.1" x53"×74.8" |
| Seat Height(inch) |
30.5" |
| Wheelbase(inch) |
74.6” |
| Ground Clearance(inch) |
12.6” |
| Fuel Capacity |
7.6 Gal. |
| Dry Weight |
1165 lbs |
| Bed Capacity |
400 lbs |
| Towing Capacity |
2000 lbs |
|
OTHER
| Standard Equipment |

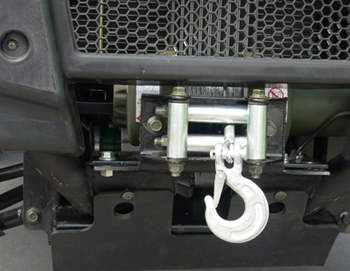

Suntop,Windshield,Aluminum wheels,Storage box,Winch, Light Kit(Turn signals
and Mirrors) |
| Color selection |
Red/Blue/Dark Green/Green/VISTA Yellow Camouflage/Black/Silver |
