| ENGINE |
| Type |
471 cc, Water Cooled, 4-stroke, 1-cylinder |
| Bore x Stroke |
84.5mm x 84mm |
| Compression Ratio |
9.4：1 |
| Max. power |
22.8HP/5500rpm |
| Max. torque |
35.0N.m/5000rpm |
| Fuel Supply |
Electric Fuel Inject (EFI) |
| Ignition |
ECU |
| Start type |
Electric |
| Transmission |
Automatic: L-H-N-R (V-Belt) |
| Drive Train |
Shaft (2WD, 4WD limited slip, 4WD Differential Lock) |
|
| CHASSIS |
| Suspension/Front |
Independent double A-arm |
| Suspension/Rear |
Independent double A-arm |
| Brakes/Front |
Dual ventilated hydraulic disc |
| Brakes/Rear |
Dual ventilated hydraulic disc |
| Tires/Front |
AT26×9-12 radial |
| Tires/Rear |
AT26×10-12 radial |
|
| DIMENSIONS |
| L x W x H |
118.5” x 57.5” x 74” |
| Seat Height |
31.5” |
| Wheelbase |
73.7” |
| Ground Clearance |
13” |
| Fuel Capability |
7.66Gal/29L |
| Dry Weight |
1148 lbs |
| Bed Capacity |
400 lbs |
| Towing Capacity |
1200 lbs |
|
| OTHER |
| Lighting/Front |
12V35W/35Wx2, 12V5Wx2 |

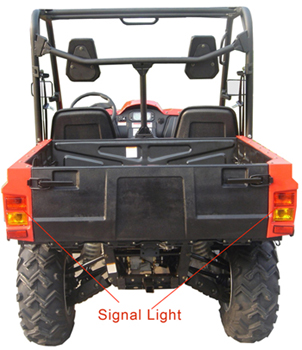

| Lighting/Rear |
12V5W/21Wx1 |
| Standard Equipment |

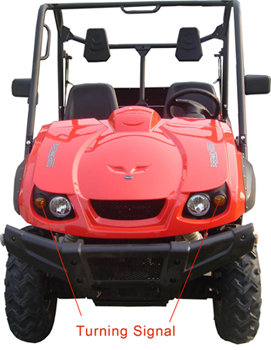

Suntop,Windshield,Aluminum wheels,Storage box,Winch, Light Kit(Turn signals
and Mirrors) |
| Color selection |
Red/Blue/Dark Green/Green/VISTA Yellow Camouflage/Black/Silver |
|
